Blynk part 1 : Starting with Blynk

For an index to all my stories click here.

Blynk - an introduction

Blynk has been around since 2015 and has a great popularity amongst users and devellopers of IOT applications. But for some reason or another I never have paid any attention to it. That is going to change now.

The front end of Blynk is an APP for Android and APPLE phones/tablets. On it's page you can put buttons, switches, sliders, text fields, leds, gauges etc etc etc. Each of these can be individually placed on the screen and adapted by you. And in my opinion it looks great !!



Above is a Blynk page on my phone that shows some of the possibilities. It is from a demo project I am going to re-create here. You can put as many buttons, sliders graphs etc etc as you want in a project. However Blynk uses a system called energy. You start with a certain amount of energy and each widget that is put on the screen uses some of that energy. So in the end you are limited with the standard version to a certain amount of widgets. You can buy more energy and that is where the guys from Blynk  earn their money. The starting amount of free energy supplied is however enough for some decent projects.
There is however a workaround that lets you use as much energy as you want and its is free, and ligit !!!  We will get to this in a follow up story.

Blynk works with a myriad of controller boards amongst them the ESP8266, ESP-01, ESP32, arduino's, Micro:Bit, Raspberry, Particle Photon, Particle Core, Particle Electron etc etc etc. Drivers are availbale for all of these boards. You can check the complete list at their develloper pages: https://github.com/blynkkk/blynkkk.github.io/blob/master/SupportedHardware.md

Next to a nice interface Blynk has excellent documentation, an API so you can control it with your own programs, an active user community, and a special webpage that contains frameworks for example programs.

How does Blynk work.

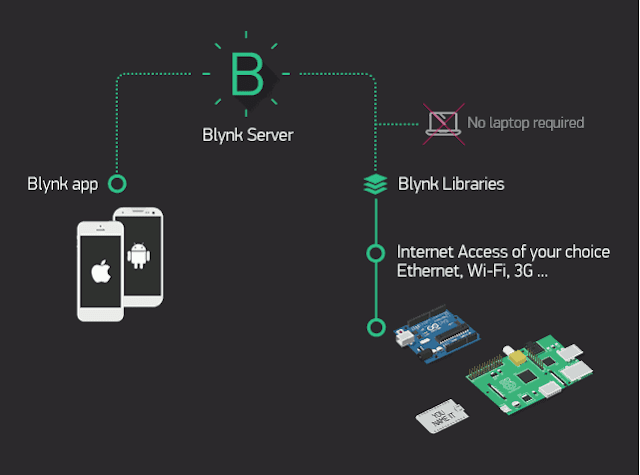

There are 3 things involved in getting Blynk working.
- First you need to download the APP (which is free) from the Google Play store (just look for Blynk) or from Apple.
- The app contacts a Blynk server
- The server sends commands from your Blynk App to your microcontroller. The Microcontroller sends data (like temperature, door sensors etc) to the server which sends the info to the App.



So there is always a sever that intermediates between your App and the microcontrollers. It works a lot like MQTT.

You are not limited to communicating with just one microcontroller you can have a lot of them and even have the server send commands and data between the controllers.

The Blynk Server can be used with a limited number of Energy. This determines how many widgets you can use on your Blynk screen. In an upcoming story I will show you how to build your own server and have unlimited Energy.

Before starting with the first project I will give you the links to the relevant Blynk pages on the web.

https://blynk.io/

This is the main page from the manufacturer.

https://blynk.io/en/developers

This is the page where you can find all documentation and links to Github pages with demonstration programs and libraries. The documentation is really extensive and clear.

https://examples.blynk.cc/?board=ESP8266&shield=ESP8266%20WiFi&example=GettingStarted%2FBlynkBlink

This is one of the most interesting pages. It is an Example Code Builder.



On the left side choose your board and connection and then chose one of the example programs and you will be presented with a framework with the basic functionality.

So let's get starting with a first project.

Hardware

For the first test I am going to use an ESP8266 (the Wemos D1 version) with a led and a button.



The setup is simple. A button with a 10K pull-up resistor connected to D6 and a led with a 220Ohm delimiting resistor connected to D5.

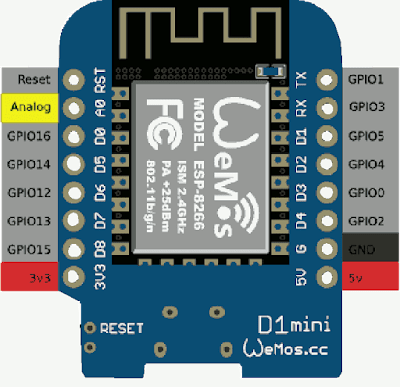

Blynk does not use the D numbers but uses the GPIO numbers. So for your convenience I herebye give you a pin layout with the GPIO numbers.

Build the control screen.




Start with installing the Blynk App from Google Play. When installed click on the icon to start it.

For my own convenience I am not doing this on my phone. I am using an android Emulator called LDPlayer4. I am using this emulator on my PC cause it makes it easy to make screendumps direct on my PC without having to transfer them from my phone to my PC. The emulator runs on Android 7 which is fine for Blynk. You can read more about htis emulator in the story that can be found here http://lucstechblog.blogspot.com/2021/03/ldplayer-android-emulator.html



When the App has started it presents you with the inlog screen. You can log in with an existing account (if you already used it before) or make a new one.
As this is the first time you are using Blynk create a new account. Fill in your e-mail adress and choose a password.



The e-mail adress is important as Blynk will send an authentification code to that adress. And you will need that code in your ESP8266 program.



The next screen offers you to build a new project so click on the +



Give your project a name. Suprisingly I called it 'test'.
As board I choose the ESP8266. Click on that line to see all available boards.
As connection I choose wifi as that is the obvious way the ESP8266 communicates with the world. Click on Create to go on.



An authentification token is send to your email-adres. Keep this token at a safe place as this needs to be put into the ESP's program so the Blynk Server knows which board it is communicating with and what is attached to that board.



You are now presented with an empty board. The dots are the indicators where a widget can be placed. Press on the + sign at the top right side of the app.



Look at all the widgets that are available. There is a wealth of functionality that allows you to build great IOT dashboards. Let's start simple and click on the button icon.



The button is placed on the empty screen. Long press it to move it to the place where you want it. Click it to open the buttons settings page.




The first picture shows how the setting pages starts. The second picture shows how I altered it. I altered the PIN in GP14 which is D5 on the Wemos D1. I also altered the font size and the color of the text and at the top I named the Button LED1



Here is the result. Now press the triangle at the top right part of the screen. This will take you from editing to running the program.



Now press the button and the text will alter from OFF to ON.

This finished our first step in the APP.
To get this working we need to program the ESP8266.

Installing the Blynk library.

First things first. To get things running we need to install the Blynk library on the ESP8266. Fortunately this is easy.



In the Arduino IDE go to the sketch tab, choose Include Library and then manage libraries.



The libraries window will open and type in search "Blynk". The Blynk library will show up and install it.
The library includes many example programs. have a look at them. They will demonstrate how to work with Blynk.

ESP8266 program.

This is really very easy. Basically it is the ESP8266_Standalone program from the examples with some minor changes.

#define BLYNK_PRINT Serial

#include <ESP8266WiFi.h>
#include <BlynkSimpleEsp8266.h>

// Fill your authentification token in
char auth[] = "YOUR TOKEN HERE";

// Your WiFi credentials.
char ssid[] = "YOUR-ROUTERS-NAME";
char pass[] = "PASSWORD";

void setup()
{
  Serial.begin(9600);

  Blynk.begin(auth, ssid, pass);
}

void loop()
{
  Blynk.run();
}

I'll go over the lines for a small explanation.

#define BLYNK_PRINT Serial

#include <ESP8266WiFi.h>
#include <BlynkSimpleEsp8266.h>


The first line opens Blynk's communication lines. The next lines load the libaries.

char auth[] = "YOUR TOKEN HERE";

This is where you put your authentification token which you received by mail.

char ssid[] = "YOUR-ROUTERS-NAME";
char pass[] = "PASSWORD";


Of course you will have to replace these with your routers credentials to get internet access.

In the setup() we find:

  Blynk.begin(auth, ssid, pass);

Which starts the Blynk libraries and connects to the internet with your credentials.

In the loop there is just one line:

  Blynk.run();

This keeps Blynk running.

That's all !!!

Press the button on the app and the led goes ON. Release the button and the led goes off.

This is a rather lengthy post. Next time I am going to show how to send information from the ESP8266 to the Blynk app.

Conclusion.

With this post I just covered the first step in working with Blynk. And I must say I am enthousiatic. Not only does it look good, it is functional and easy to work with. It will not replace Domoticz which is my home automation system but Blynk is a valauble add on. It is a lot easier then building your own web interface and gets things done in a really short time.

There is a lot to be discovered and in upcoming stories I am going to show you how to have Blynk communicating with Domoticz but also how to use its API to control certain aspects from within your own programs.

Till next time.
Have fun.

Luc Volders




















Friday, March 19, 2021

LDPlayer an Android Emulator

 For an index to all my stories click this text

For one reason or another I always stumble upon new things for this blog. And sometimes I decide to pick up something that has been yelling for attention but I just never had the time for.
Blynk for example is something that has been around for a long time, but I never found time for it. Well the past holliday season gave me that time, so I started experimenting with Blynk.

Blynk is an IOT solution but all phone-oriented. As I wanted to write sdome entries in this web-log about Blynk I needed to make several screendumps on my phone and transfer them to my PC. I also needed to transfer some authentification tokens from the phone to my PC.

For previous stories I was copying screendumps from my phone to Google Drive. Next I opened Google drive on my PC and downloaded the screendumps. I did the same for texts. It works but is not very efficient. Every time I wanted to add a screendump I had to log into Google Drive again and repeat the procedure.

Next to that I am building and testing some new apps. Some are build with Mitt's App-Inventor, and some are just plain Javascript files. Transferring them to my phone is a tedious task. Test the file on my PC. Copy it to Google Drive, open Google Drive on my phone and download the app.

So I was looking for something easier to transfer things to and from my phone. And then I had this stupid idea. Maybe there is an Android emulator for PC's on which I can experiment before actually transferring to my PC. And yes there is !!!

LDPlayer

Actually there are many Andoid emulators available for PC's but there is one that stood out from the rest and it is called LDPlayer.

LDplayer is actually build for those Android users that want to play their Android Games on their PC. So I was a bit reluctant to install it. But what the heck if it would not function I could remove it anyhow. So I gave it a go, and wow was I pleasantly surprised.

LDPlayer is a full Android emulator on your PC. It runs Andoid 7.1 so it is not the latest/newest version but recent enough to run most apps. Installing is just pressing a button on the website and then executing the installation program. This is a slow process, so take your time. It took several minutes on my PC.



Download it here: https://www.ldplayer.net/

Using the emulator



The emulator starts in landscape mode but clicking the small phone icon it switches to portrait mode.



The photo shows that it emulates a phone with just a few apps installed. Just as I prefer.



The combined System Apps icon expands when you click on it and the most essential apps are present: the file manager, the settings and the play store.

If you want to use the Play Store app (and you DO want that) you have to fill in your credentials just like you did on your phone. If you are afraid of your privacy just create a new account with Google.



Clicking on the scissor icon at the right side of the screen makes a screen dump of the Android screen. The screendump is stored on your PC in the folder C:\Users\yourname\Documents\XuanZhi\Pictures\Screenshots.

This makes life a lot easier for me !!!!
The screenshot only contains the Android screen not the rest of the program or anything else from your Windows screen.

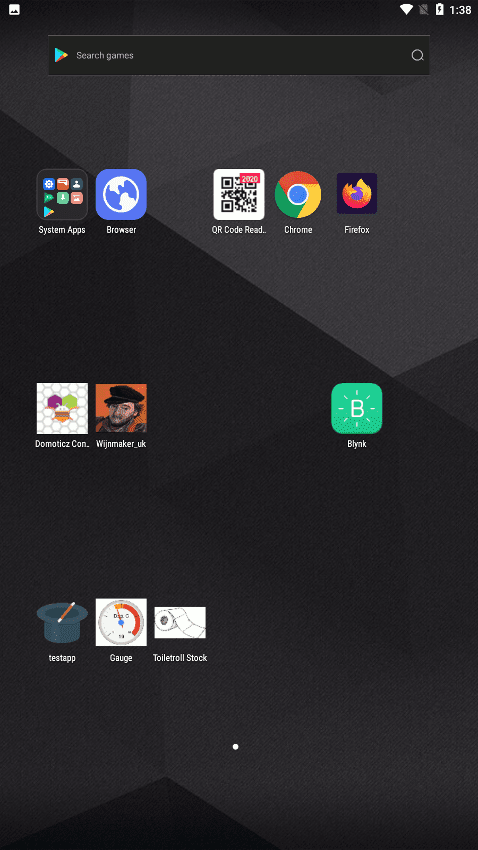

Above you can see such a screenshot and it shows that I installed several apps. The Domoticz Control app, Wijnmaker app, testapp, Gauge and Toiletroll Stock app are all aps I created myself. The Firefox and Chrome apps are downloaded from the playstore just like the Blynk app.

Some general info.

LDPlayer is versatile. It is an emulator and not a real phone. Therefore it lacks the phones hardware. However the emulator is made in such a way that it uses your computers resources. The QR Code Reader for example uses your computers webcam.

If you open an app that plays music (like youtube) it will play the music over your computers speakers.

Naturally the App has no wifi so it uses your computers internet connection to perform tasks. That is why the Domoticz app and other apps work flawlessly.

Another neat option is when you have text on your screen you can copy it and paste it in a program on your PC. This way I was able to easily transfer the Blynk authentication codes to Arduino's IDE.


Blynk

I started this story with mentioning that I wanted to do some expermiments with Blynk. You already saw the Blynk icon on the home screen and here is a screendump of Blynk in action. Well Blynk connected flawlessly to my own Blynk server, and ran just as smooth as on my phone.



Pressing the OFF button switched it to ON and switched a led on my ESP32 on. I attached a button to the ESP32 and pressing that activated the big round Led next to the OFF button. The graph showed in real-time the temperature and updated it nicely when I put my fingers around the to the ESP32 attached DS18B20.

Concluding.

If you want to test Apps or websites before you transfer them to your phone LDPlay is a great tool that helps tremendous. Oh, and did I mention it is free ???

Till next time
have fun

Luc Volders








Friday, March 5, 2021

Raspberry Pico pin layout help

 For an index to all my stories click this text.

This is my third weblog entry about the Raspberry Pico. Indeed I am paying a lot of attention to this board lately and that is because I am writing a book about the Pico. If you are interested send me an email and I will inform you when it is available.

There is a big annoyance when working with the Raspberry Pico.



Ok, just a picture of the Pico on a breadboard. Nothing special.
Adding breadboard wires is when the annoyance begins. There is no indication on the numbering or layout of the pins.



Well actually there is pin numbering on the Pico, but it is on the backside. That's no good when it is mounted on a breadboard.

Therefore I made myself a small aid.



It is just a small print with the pin numbers and the GP numbering.



Just print it and lay it on top of your Pico and it is much easier to know where to put which wire.

For your convenience I give you here the links where to download the picture and a PDF containing 5 pieces at the right size.

Click here to be redirected to the picture

Click here to be redirected to the PDF file containing 5 pieces.

If you want to print the picture yourself, make sure you resize it to 5.1 x 2 cm.

Till next time
Have fun

Luc Volders
